Hantek PP200 Sonda Osciloscopio 200MHZ Atenuación x1/x10
30.67 €
37,11 € IVA INCLUIDO
Sonda Osciloscopio de 200MHZ de ancho de banda.
Moldeada por inyección integral en una sola pieza, lo que la hace más flexible.
Relación de atenuación: 1x y 10x seleccionable.
Compatible con cualquier osciloscopio dentro del rango de frecuencia soportado.
HANTEK PP200
Sonda Osciloscopio 200MHZ Atenuación 1/10
Performance & Characteristics:
● Attenuation ratio: 1× and 10× selectionable.
● Portable design according with ergonomics.
● Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
Application Fields:
● Compatible with any oscilloscope within the frequency range supported.
● Measurement in intermediate and low frequency signals.

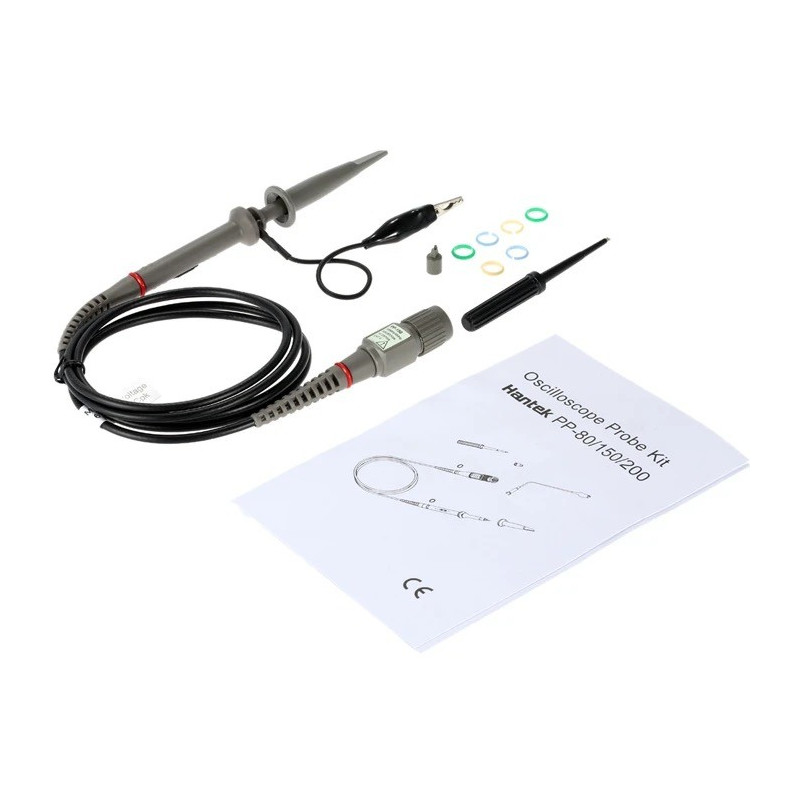

Accessories included:
● Operation manual
● Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
● Contractive-type acuminate hook.
● 12cm earth wire with alligator clip.
● 4 pairs of colorized cable markers.
● Locating sleeve adapts to IC testing.
| Item |
PP-80 |
PP-90 |
PP-150 PP-150B |
PP-200 PP-200B |
| Attenuation | x1 x10 | |||
| Input resistance | 1MΩ: 10MΩ | |||
| Input capacitance | x1: 85pF-115pF x10:18.5pF-22.5pF |
x1: 85pF-115pF x10: 18.5pF-22.5pF |
||
| Compensation scope | 20pF-40pF | 15pF-40pF | 15pF-35pF | |
| System bandwidth | x1:DC-6MHz; x10: DC-60MHz |
x1:DC-6MHz; x10: DC-80MHz |
x1: DC-6MHz x10: DC-100MHz |
x1: DC-6MHz x10: DC-200MHz |
| Input voltage | x1:<200v dc="" peak="" ac="" br=""> x10: <600v dc="" peak="" ac="" td=""> | |||
| weight | 55g | |||
| Cable length | 120cm | |||
| Temperature scope: | Operation: -10 ℃ --+50 ℃ Not Operation: -20 ℃ --+75 ℃ |
|||
| Humidity | ≤ 85% (Relative humidity) | |||
PP200
