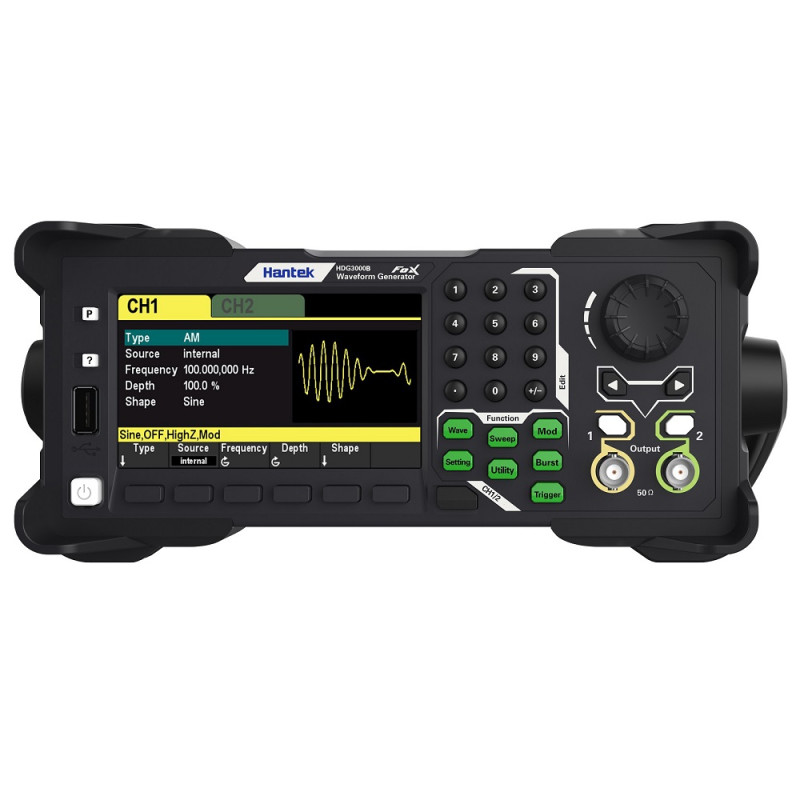

Hantek HDG3102B Generador de señales Arbitrarias / Funciones 100MHZ / 2 Canales

489.78 €
592,63 € IVA INCLUIDO

Rango de frecuencia: CH1 y CH2: 1 μHz ~ 100 MHz.
5 en 1: Generador de forma de onda arbitraria, generador de pulso, generador de funciones, generador de armónicos y medidor de frecuencia.
Tecnología DDS (Direct Digital Synthesizer) , puede generar una señal de salida estable, pura y de baja distorsión.
Permite control desde PC.

Cantidad
ENVIO EN 24H

GENERADORES DE SEÑALES / FUNCIONES

HANTEK SERIE HDG3000B

HDG3000B sets arbitrary waveform generator, pulse generator, function generator, harmonic generator, frequency meter 5 functions in one. It uses the DDS (Direct Digital Synthesizer) technology, and can generate stable, pure, and low-distortion output signal. Humanized interface design and keyboard layout give users extraordinary experience. Rich configuration interfaces can easily achieve computer control of the instrument, which provides users with more solutions for measurement.
  • Frequency range: CH1&CH2: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz.(Depending on model)
  • Up to 300MSa/s sampling rate, no distortion of analog waveforms.
  • 16-bit vertical resolution ensures the accuracy of waveform amplitude.
  • The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.
  • A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
  • Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
  • 1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp.
  • Built-in 80MHz high-resolution frequency meter.
  • Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
  • More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.
  • Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.
Equip with the sine wave with the maximum output bandwidth
Frequency range: 1μHz~100MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.
Equip with the square wave with the maximum output bandwidth
Frequency range: 1μHz~15MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.
Equip with the triangle wave with the maximum output bandwidth
Frequency range: 1μHz~2MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°; Adjustable symmetry: 0%~100%.
Equip with more than 160 kinds of arbitrary waveform output.
Index rise, index fall, ECG signal, Gauss, half vector, Lorentz, dual tone multi-frequency, DC voltage and other more than 160 kinds of arbitrary signals.
Equip with dual channel output modulation waveform AM/FM.
Rich modulation functions, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
Equip with dual channel output burst function.
Support control of burst output by internal, manual or external trigger sources. Three burst types are supported, including multi cycle, infinite cycle, and gated.
Equip with an 80MHz frequency meter.
The instrument can measure the frequency, period, duty cycle, positive pulse width and negative pulse width and other parameters of the external input signal.
Model Channels Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Interface
HDG3012B 2CH 15MHz 300MSa/s 16Bits 2Mpts USB Host，USB Device
HDG3022B 2CH 25MHz 300MSa/s 16Bits 2Mpts USB Host，USB Device
HDG3042B 2CH 40MHz 300MSa/s 16Bits 2Mpts USB Host，USB Device
HDG3062B 2CH 60MHz 300MSa/s 16Bits 2Mpts USB Host，USB Device
HDG3082B 2CH 80MHz 300MSa/s 16Bits 2Mpts USB Host，USB Device
HDG3102B 2CH 100MHz 300MSa/s 16Bits 2Mpts USB Host，USB Device

Model

HDG3102B

HDG3082B

HDG3062B

HDG3042B

HDG3022B

HDG3012B

Channel

2

Wavelength

2M

Frequency range

100MHz

80MHz

60MHz

40MHz

25MHz

15MHz

Sampling rate

300MSa/s

Voltage resolution

16Bits

Waveform

Standard waveform output

sine wave, square wave, triangular wave, pulse wave, noise, harmonics

Arbitrary waveform output

160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc

Frequency property

Sine wave

1 μHz ~ 100 MHZ

1 μHz ~ 80 MHZ

1 μHz ~ 60 MHZ

1 μHz ~ 40 MHZ

1 μHz ~ 25 MHZ

1 μHz ~ 15 MHZ

Square wave

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

Pulse wave

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

Triangle wave

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

Harmonic

1 μHz ~ 50 MHZ

1 μHz ~ 40 MHZ

1 μHz ~ 30 MHZ

1 μHz ~ 20 MHZ

1 μHz ~ 10 MHZ

1 μHz ~ 5 MHZ

Noise (3 db)

100 MHZ bandwidth

Arbitrary wave

1 μHz ~ 20 MHZ

1 μHz ~ 20 MHZ

1 μHz ~ 20 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

Resolution

1μHz

Precision

±1ppm, 18~28℃

Square wave property

Rise/Fall time

Typical (1kHz, 1Vpp)

≤9ns

Overshoot

Typical (100kHz, 1Vpp)

≤5%

Duty cycle

0.001% ~ 99.999%;

The range varies with the frequency

Asymmetry

1% of the period plus 4ns

Triangular wave property

Linear

≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)

Symmetry

0% ~ 100%

Impulse wave property

Cycle

67ns~1Ms

67ns~1Ms

67ns~1Ms

67ns~1Ms

67ns~1Ms

67ns~1Ms

Pulse

≥16ns

≥16ns

≥16ns

≥16ns

≥16ns

≥16ns

Rise/Fall time

≥9ns (limited by current frequency setting and pulse width setting)

Overshoot

Typical (1kHz, 1Vpp)

≤5%

Arbitrary wave property

Wavelength

2M

Vertical resolution

16 Bits

Sampling rate

1μSa/s~62.5 MSa /s, 1μSa/s resolution

Time of rise/fall

Ns of 9 or higher

Overshoot

Typical (1Vpp)

≤5%

Harmonic property

Harmonic frequency

≤16

Harmonic type

Even harmonics, odd harmonics, all harmonics

Harmonic amplitude

All harmonic amplitude can be set.

Harmonic phase

All harmonic amplitude can be set.

Amplitude property (50Ω terminal)

Amplitude range

≤10MHz: 1mVpp ~ 10Vpp;

≤55MHz: 1mVpp ~ 5.5Vpp;

≤80MHz:1mVpp ~ 3.5Vpp;

≤100MHz:1mVpp ~ 2Vpp;

Precision

Typical (1kHz sine wave, 0V offset, > 10mVPP)

± 1% setting value ± 5mVpp

Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω)

≤5MHz: ±0.1dB;

≤15MHz: ±0.2dB;

≤25MHz: ±0.3dB

≤40MHz: ±0.5dB

40MHz: ±1.0dB

Unit

Vpp, mVpp, Vrms, dBm(50Ω impedance)

Resolution

1mVpp

Offset property (50Ω terminal)

Scope

±5Vpkac+dc

Precision

±(1% of the setting value + 5mV + 1% of the amplitude)

Waveform output

Impedance

50 Ω

Modulation property

Modulation type

AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM

AM

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

Internal, external and other channels

Modulation wave

Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg

Modulation frequency

2mHz~1MHz

Modulation depth

0% ~ 120%

DSB-AM

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

Internal, external and other channels

Modulation wave

Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg

Modulation frequency

2mHz~1MHz

Modulation depth

0% ~ 120%

FM

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

Internal, external and other channels

Modulation wave

Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg

Modulation frequency

2mHz~1MHz

PM

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

Internal, external and other channels

Modulation wave

Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg

Modulation frequency

2mHz~1MHz

Phase deviation

0 ° ~ 360 °

ASK

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

Internal and external

Modulation wave

50% duty cycle square wave

Modulation frequency

2mHz~1MHz

FSK

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

Internal and external

Modulation wave

50% duty cycle square wave

Modulation frequency

2mHz~1MHz

PSK

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

Internal and external

Modulation wave

50% duty cycle square wave

Modulation frequency

2mHz~1MHz

BPSK

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

internal

Data source

PN15, PN21, 01, 10

Modulation frequency

2mHz~1MHz

QPSK

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

internal

Data source

PN15, PN21

Modulation frequency

2mHz~1MHz

3FSK

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

internal

Modulation wave

50% duty cycle square wave

Modulation frequency

2mHz~1MHz

4FSK

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

internal

Modulation wave

50% duty cycle square wave

Modulation frequency

2mHz~1MHz

OSK

Carrier

Sine wave

Modulation source

Internal, external

Shock time

8 ns - 4.99975 ms

Modulation frequency

2mHz~1MHz

PWM

Carrier

Square wave

Modulation source

Internal, external and other channels

Modulation wave

Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg

Modulation frequency

2mHz~50KHz

Duty cycle deviation

0% ~ 50%

External modulation input

Input range

AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac + dc

ASK, FSK, PSK: TTL level

Input bandwidth

50KHz

Input impedance

10 KΩ

Sweep frequency property

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Type

Linear

Direction

Upward

Frequency sweep time

1ms ~ 50Ks

Hold/return time

0ms ~ 50Ks

Trigger source

Internal, external, manual

Tag

Synchronize the model's falling edge

Burst property

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Carrier frequency

1 μHz ~ 100 MHZ

1 μHz ~ 80 MHZ

1 μHz ~ 60 MHZ

1 μHz ~ 40 MHZ

1 μHz ~ 25 MHZ

1 μHz ~ 15 MHZ

Burst counting

1 ~ 2000 000 000

Start/stop phase

0 ° ~ 360 °

Internal cycle

2 μs ~ 500 s

Door control source

External trigger

Trigger source

Internal, external, manual

Frequency meter

Measurement functions

Frequency, period, positive/negative pulse width, duty cycle

Frequency

1 μHz ~ 80 MHZ

Gate time

10ms~16s

Input signal range

0 ~ 3.3 V

Trigger property

Trigger input

Level

TTL - compatible

Slope

Up or down (optional)

Pulse width

>100ns

Trigger output

Level

TTL - compatible

The pulse width

>60ns

Maximum frequency

1MHz

Reference clock

External reference input

Lock range

10 MHz ± 50 Hz

Level

Low level: 0~400mV, high level: 2.5V~5V

Locking time

< 2 s

Input impedance

50 Ω, DC coupling

Internal reference output

Frequency

10 MHz + 50 Hz

Level

3.3 Vpp

Output impedance (typical value)

50 Ω, DC coupling

Synchronous output

Level

TTL - compatible

Impedance

50Ω, nominal value

General features

Interface

USB Host, USB Device

Display

4.3-inch color TFT LCD screen

Voltage

100-120VACRMS(±10%),45Hz to 440Hz, CATⅡ

120-240VACRMS(±10%),45Hz to 66Hz, CATⅡ

Power

<30W

Fuse

T, 0.5 A, 250 v, 5 x20mm

Environment

Temperature range

Operation: 10℃ ~ 40℃

Non-operation: -20℃ ~ 60℃

Humidity range

≤+104℉(≤+40°C): Relative humidity ≤90%

106℉~122℉ (+41°C ~50°C): Relative humidity ≤60%

Altitude

Operation: below 3000 meters

Non-operation: below 15000 meters

Mechanical specifications

Dimensions (W × H × D)

308mm x 232mm x 110mm

Weight

3.09 KG
HANTEK
HDG3102B

Ficha técnica

Serie
HDG3000B
Generador de señales / Funciones
Si
Canales de generador
2
Ancho de banda maximo (MHZ)
100MHZ

Referencias específicas

Descargas

Para descargar estos archivos tiene que haber adquirido antes el producto y estar conectado a su cuenta.

(ES) Manual Abreviado

Manual Abreviado de Seguridad y Puesta en Marcha - Español

Descargas (133.77KB)

(EN) Manual abbreviated

Basic Safety Manual and Startup - English

Descargas (158.8KB)

(EN) HDG3000BC Manual

HDG3000BC Series Arbitrary Waveform Generator Extended Manual (English)

Descargas (1.31MB)

(EN) HDG3000BC QuickGuide

HDG3000BC QuickGuide (English)

Descargas (320.1KB)
