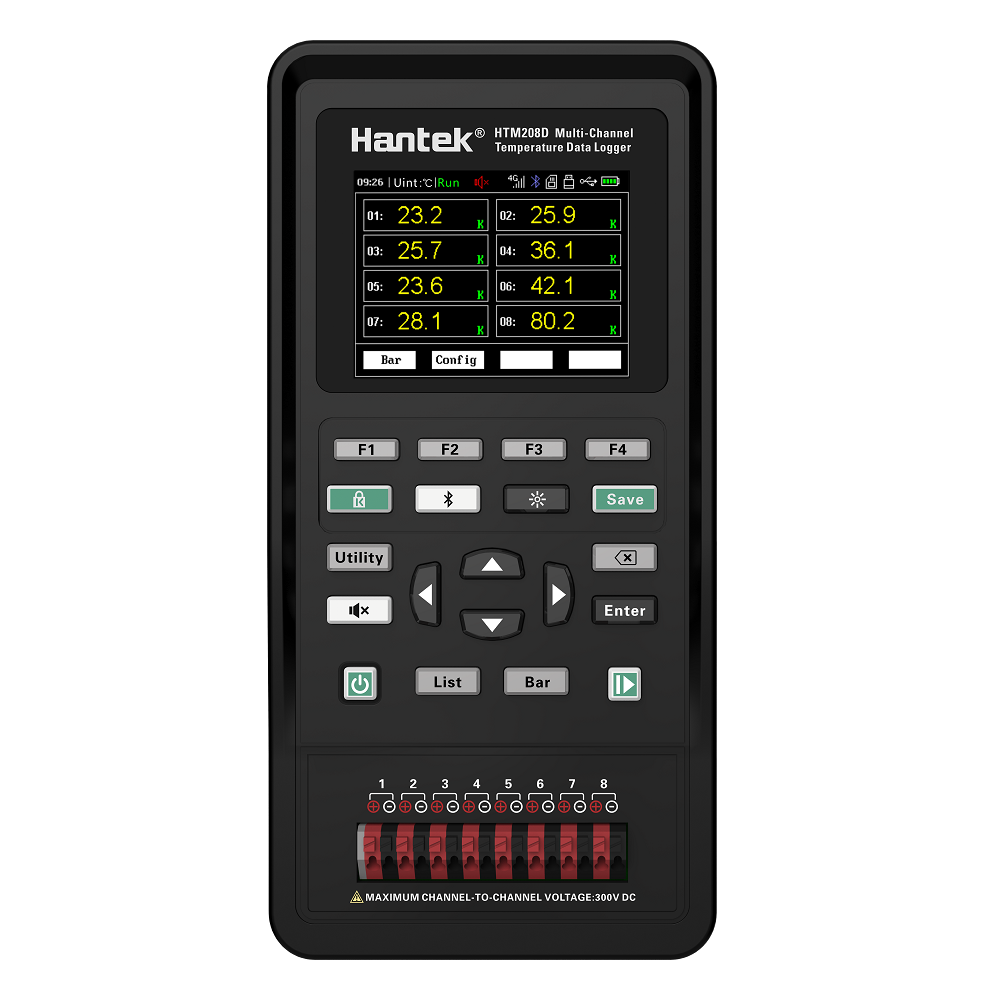

Hantek HTM208B Registrador de temperatura 8 canales
236.35 €
285,98 € IVA INCLUIDO
Registrador de temperatura de 8 canales portátil.
Recopila datos de temperatura simultáneamente por 8 canales en tiempo real.
Visualización de lista y gráfico de barras y alarmas de límite superior e inferior.
Compatible con 11 tipos de termopares.
Almacenamiento en memoria interna.
Hantek HTM208C
Registrador de temperatura 8 canales
- Adopt 18650 standard lithium battery, support Type-C charging;
- The digital signal and the analog signal adopt the isolation design, which can carry out the live test, which is safe and reliable;
- 320*240 TFT high-definition display screen Intuitively display multi-channel real-time signal changes, switch temperature lists and bar graphs in real time;
- Support the test of 11 types of thermocouples such as J/K/T/E/S/N/B/R/A/C/D;
- The machine saves the settings of the last shutdown by default, which is convenient for engineers to measure and record;
- Standard U disk storage function, support optional Micro SD card data storage;
- Over-temperature alarm control: When the set temperature is higher than the upper limit or lower than the lower limit, the buzzer will sound for a long time;
- Standard Type-C communication function, support optional Bluetooth module/4G communication module;
- Equipped with Windows and Android data acquisition terminals, supporting multi-platform data acquisition and monitoring;
- Widely used in cold storage, warehouse temperature, surface measurement of electronic components and other fields.

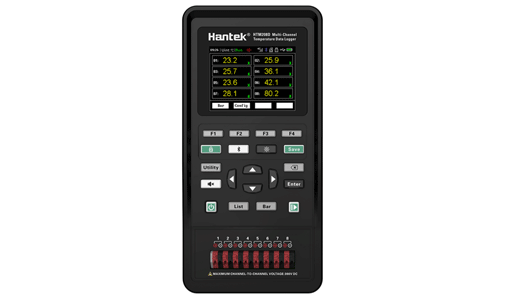

Small and portable industrial design
The sheath is designed to be non-slip and shock-resistant; the machine has a small appearance and is easy to carry; the silicone keyboard design is comfortable and wear-resistant; the personalized key layout is easy to operate.

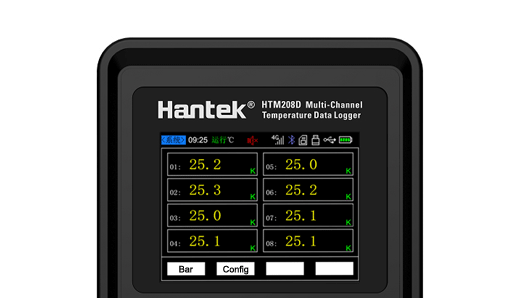

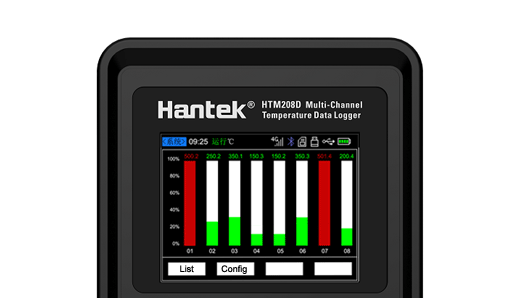

Standard high-definition display
320*240TFT high-definition display screen. Visually display multi-channel real-time signal changes, and switch temperature lists and bar graphs in real time.

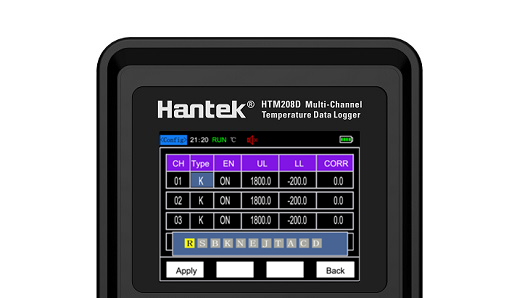

Supports 11 thermocouple tests
It supports 11 types of thermocouple tests such as J/K/T/E/S/N/B/R/A/C/D, which is convenient for engineers to measure and select.

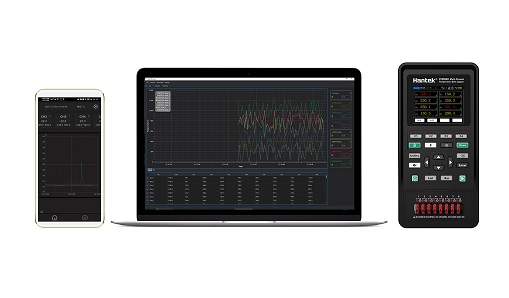

Standard Windows and Android data acquisition terminal
Standard Type-C communication, support optional Bluetooth module and 4G communication module; easily realize real-time monitoring of measurement data on multiple platforms.
Support one key to open/close over temperature alarm control
Support one key to turn on/off the over-temperature alarm function. The over-temperature alarm function is enabled by default. When the measured temperature is higher than the upper limit or lower than the lower limit, the buzzer will alarm (long beep).

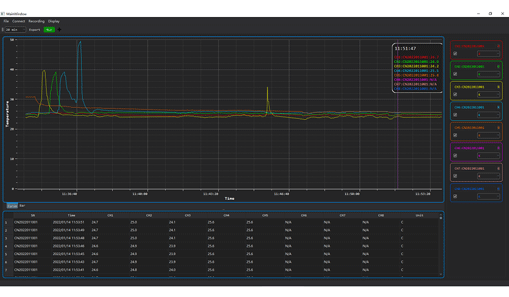

Support software to quickly track abnormal temperature changes
Standard Type-C communication, support Windows/Android platform software to quickly track abnormal temperature changes; quickly read the temperature value of each channel.
|
Model |
Channel |
U disk storage |
Bluetooth |
SD card storage |
4G (Universal Version) |
4G (domestic) |
Windows/Android |
Interface |
| HTM202B | 2 |
Yes |
Without |
Without |
Without |
Without |
Support |
Type-C |
| HTM204B | 4 |
Yes |
Without |
Without |
Without |
Without |
Support |
Type-C |
| HTM208B | 8 |
Yes |
Without |
Without |
Without |
Without |
Support |
Type-C |
| HTM202C | 2 |
Yes |
Yes |
Yes |
Without |
Without |
Support |
Type-C |
| HTM204C | 4 |
Yes |
Yes |
Yes |
Without |
Without |
Support |
Type-C |
| HTM208C | 8 |
Yes |
Yes |
Yes |
Without |
Without |
Support |
Type-C |
| HTM202D | 2 |
Yes |
Yes |
Yes |
Support |
Without |
Support |
Type-C |
| HTM204D | 4 |
Yes |
Yes |
Yes |
Support |
Without |
Support |
Type-C |
| HTM208D | 8 |
Yes |
Yes |
Yes |
Support |
Without |
Support |
Type-C |
| HTM202E | 2 |
Yes |
Yes |
Yes |
Without |
Support |
Support |
Type-C |
| HTM204E | 4 |
Yes |
Yes |
Yes |
Without |
Support |
Support |
Type-C |
| HTM208E | 8 |
Yes |
Yes |
Yes |
Without |
Support |
Support |
Type-C |
|
Parameters |
||||
|
Graduation number |
11 kinds of thermocouples: J/K/T/E/S/N/B/R/A/C/D type |
|||
|
Basic accuracy |
Type K thermocouple: |
|||
|
-200°C to 0°C error is ±1.2°C |
||||
|
The error from 0°C to 1370°C is ±0.8°C |
||||
|
(excluding thermocouple error) |
||||
|
Temperature measurement range |
Type K thermocouple: -200°C to 1370°C |
|||
|
Resolution |
0.1℃ | |||
|
Correction |
Each channel can be corrected |
|||
|
Alarm |
Support upper and lower limit alarms |
|||
|
Display |
Support list display and bar graph display |
|||
|
Cold Junction Compensation |
Accuracy: 0.5℃ |
|||
|
Software support |
Android and Windows data acquisition software |
|||
|
Storage |
Support U disk (standard) and Micro SD card (optional) to save in real time |
|||
|
Communication Interface |
USB-Type C communication (standard), Bluetooth and 4G communication (optional) |
|||
|
Maximum withstand voltage between channels |
300VDC | |||
|
Channel maximum input voltage |
±75VDC | |||
|
Plug-in terminal type |
E0308 Tube Terminal Blocks |
|||
|
Other |
2.8 inch TFT-LCD display; |
|||
|
USB communication, compatible with SCPI instruction set; |
||||
|
Support Chinese and English; |
||||
|
Backlight brightness adjustment; |
||||
|
Shutdown time settings |
||||
|
General characteristics |
||||
|
Operating environment |
0~40℃，<80%RH | |||
|
Storage environment |
-10~60℃，<90%RH | |||
|
Preheat time |
>30 minutes |
|||
|
Power Requirements |
Input: 100VAC ~ 240VAC, 50Hz/60Hz |
|||
|
Output: 5V/2A DC |
||||
|
Battery parameters |
Two 3.7V 18650 lithium batteries |
|||
|
Working hours |
>15 hours |
|||
|
Working power consumption |
1W | |||
|
Size and weight |
Size: 200mm*98mm*40mm |
|||
|
Weight: 600g |
||||
